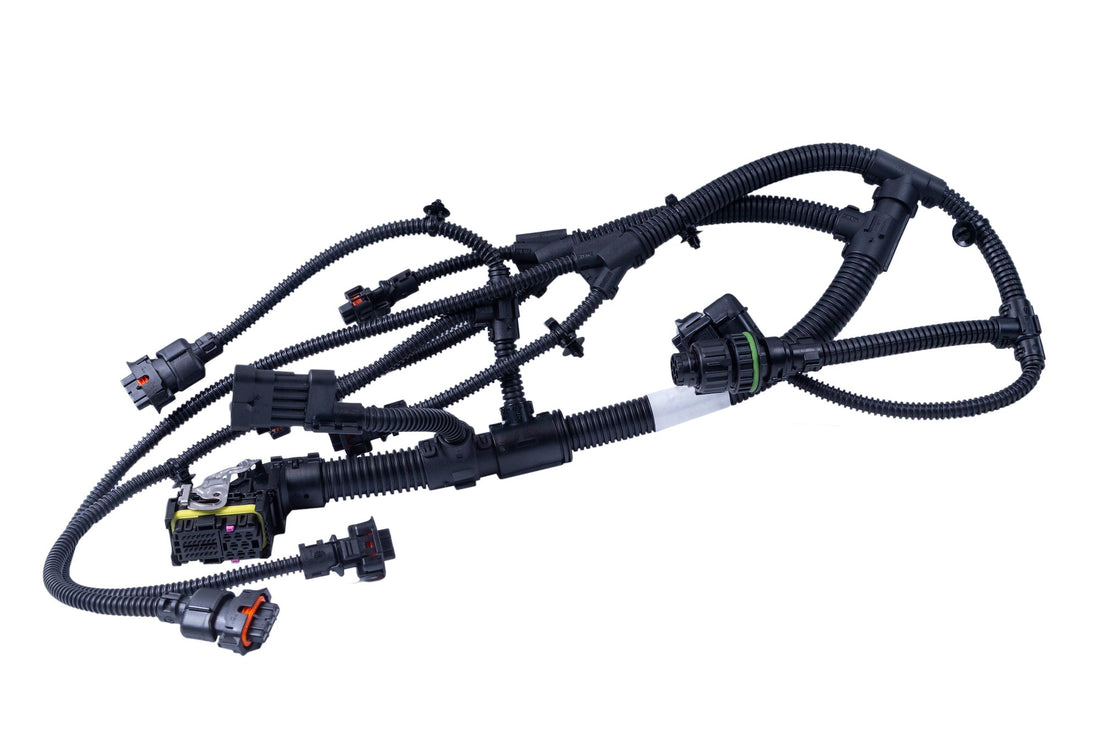

How to Choose the Right Dodge Ram Wiring Harness

1. Identify Your Truck’s Specifics

Start by gathering:

• Model year (e.g., 2004 Ram 1500)
• Cab configuration (Quad Cab, Crew Cab, etc.)
• Engine/transmission type
• Required system type (engine, dash, front light, frame/body, etc.)

All Dodge Truck Parts lists harnesses by truck model and year—spanning Ram 1500, 2500, 3500, 5500—and separates them by system: engine/transmission, headlamp-to-dash, dash harness, frame/body, and more.

2. Understand the Major Harness Types

According to official Dodge technical info, trucks generally use four key harnesses:

• Engine harness, connecting alternator, fuel injectors, and sensors.
• Front-end harness, linking headlights, parking lights, and front ABS sensors—often attached to the fuse box.
• Frame/body harness, running through the wheel well to connect tail lights, fuel tank, and rear ABS.
• Under-dash (dash) harness, handling instrument cluster, ignition, steering, radio.
• The body harness ties into the body computer, power seats, dome lights, seat belt sensors, and other accessories.

Tip: part numbers are often on tags near the fuse box or brake booster; match them for an exact fit.

3. Check Compatibility vs. Appearance

Even if two harnesses look the same, years, trims, and features can result in slight wiring or pin differences. For instance, the wiring on a 5.7L differs from a 3.6 Pentastar engine; ABS presence or keyless entry systems among 2002–2006 models also affect harness configurations. Some Ram owners have noted that even trucks lacking certain features (heated seats, fog lights) still include compatible wiring—careful inspection is key.

4. Measure and Inspect Carefully

Always validate:

• Wiring length and routing paths
• Connector types and pin assignments
• Presence of fuses, relays, or modules integrated into harnesses

If it's a used harness, check for intact insulation, corrosion-free connectors, and absence of broken tabs.

5. How to Use Diagrams & Part Numbers Effectively

Refer to factory wiring diagrams or free resources online to trace circuits. A good diagram shows wire colors, fuse integration, grounding points, and all connected stops along the harness—making troubleshooting far easier.

Always aim to match your truck’s part number, as even minor revisions can impact compatibility.

6. Avoiding Common Pitfalls

• Don’t assume universal fit—differences emerge even between consecutive model years or trim levels.
• Avoid DIY splicing unless you're experienced—plug-and-play harnesses significantly lower the risk of shorts or miswiring.
• Confirm correct connector types (spade, pin, push-pull) for your application.
• Before reassembly, always bench-test the harness with a multimeter to verify continuity and voltage paths.

Need Help? Contact an Expert at All Dodge Truck

If this process feels overwhelming, don’t worry. All Dodge Truck Parts is here to support you. Here's how to connect for expert assistance:

Call: (916) 635-7602

One of their specialists can walk you through selecting the correct harness, verifying part numbers, and even help you navigate vin-based searching if they offer that service.

During the call, have these details handy:

• Your vehicle’s make, model year, and engine/tranny specs
• Which harness type you need (e.g., engine, dash, front-end)
• Any existing part numbers or labels
• Your VIN, if available—some parts can be found quickly via VIN lookup

Summary Table: Steps to Choosing the Correct Harness

Final Thoughts

Choosing the right Dodge Ram wiring harness comes down to precision—understanding your truck’s exact configuration, using diagrams and part numbers, and ensuring connector compatibility. And if you ever feel stuck, know you can call All Dodge Truck Parts at (916) 635-7602 for trusted support.
