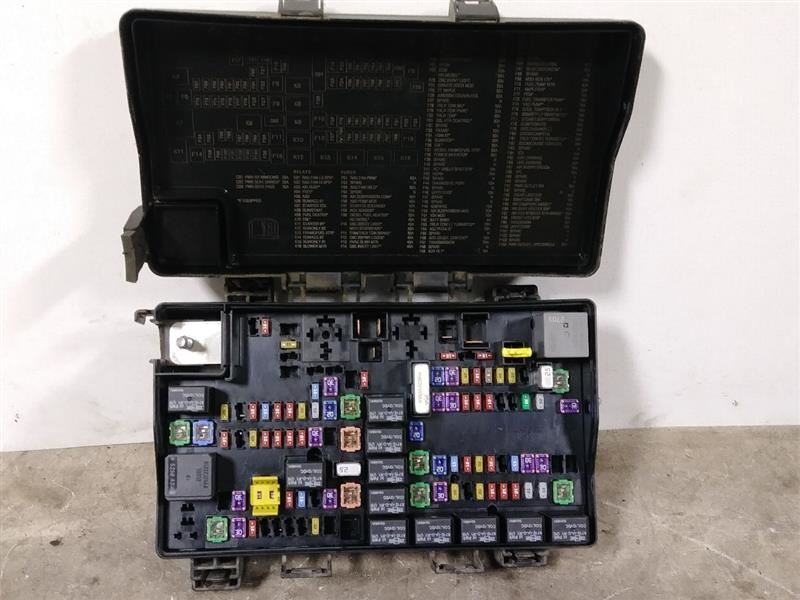

Dodge Ram 1500 TIPM: How to Identify the Right Totally Integrated Power Module for Your Truck
A Dodge Ram 1500 TIPM, or totally integrated power module, is the truck's central power distribution unit. It combines the fuse block, the relay center, and the control electronics that feed circuits such as the fuel pump, headlights, wipers, and horn into one housing. Because a TIPM is built to a specific truck configuration and carries its own part number, a module pulled from a different Dodge Ram model year or drivetrain will not reliably work in yours. All Dodge Truck is a Dodge Ram parts specialist in Gold River, California, family owned since 1962 and Dodge only since 1984, stocking used OEM electrical modules for Ram 1500, 2500, 3500, 4500, and 5500 trucks and shipping nationwide.
What Is a TIPM on a Dodge Ram 1500?
The TIPM is the box that took over the job the old fuse panel and relay center used to split between them. On a Dodge Ram 1500 the totally integrated power module holds the fuses and relays in one housing and adds control electronics that switch those circuits on and off, rather than leaving every circuit to a simple mechanical relay. Power for the fuel pump, the headlights, the wipers, the horn, the starter circuit, and the heating and air conditioning blower all passes through it or is commanded by it.
That consolidation is why the module matters so much to a Ram owner. A failed relay in an older truck was a part you could pull and swap in a parking lot. On a TIPM equipped truck the failure is inside a module that also talks to the rest of the vehicle network, so a fault can present as several unrelated problems at once. An owner chasing a fuel pump complaint and an intermittent wiper problem in the same week is often chasing one part, not two.
The module sits in the engine compartment on the Ram trucks that use it, which is also why heat, vibration, and moisture are worth taking seriously on a used unit. Anyone searching for Dodge Ram parts near me and hoping to solve an electrical gremlin with a single relay should understand first whether the truck in question routes that circuit through a TIPM at all.
Which Dodge Ram Model Years Use a TIPM?
Totally integrated power modules appear on Dodge Ram trucks from the later part of the third generation in the mid to late 2000s and continue through the fourth generation Ram 1500, which ran from the 2009 model year through 2018. Ram 2500 and 3500 trucks of the same era use the module as well, with their own configurations behind it.
Knowing the generation is a starting point and nothing more. Trucks built in the same model year can carry different modules depending on engine, transmission, trim, and the options the truck left the factory with. Two 2011 Ram 1500 trucks parked next to each other can need different part numbers. That is the single most common reason a used module gets ordered, installed, and then returned.
The only reliable way to confirm what a specific truck uses is to read the part number off the module itself and to have the VIN in hand. Our guide on how to check Ram part numbers walks through where to look and what the numbers mean. Verify against the physical part rather than a year chart, and the ordering problem mostly disappears.
What Are the Symptoms of a Failing Dodge Ram TIPM?
Ram owners commonly report a recognizable set of complaints when a TIPM is involved. The fuel pump is the one most often described: it runs continuously with the key off, or it fails to prime when the key is turned, and the truck cranks without starting. Others report wipers that sweep on their own, a horn that sounds without input, headlights that flicker or refuse to switch between modes, and a starter that engages intermittently or not at all.
What connects those symptoms is that they are all circuits the module controls, which is why several can appear together. A truck with an unexplained no start condition and an unrelated lighting complaint in the same period is showing the pattern that points toward the module rather than toward each individual component.
Every one of those symptoms can also come from something else. A no start can be a battery, a ground, a starter, or a wiring fault, and a fuel pump complaint can be the pump. All Dodge Truck sells parts and does not perform diagnosis or installation, so the honest advice is to have the fault confirmed by a qualified technician before buying a module. Replacing a TIPM on a hunch is an expensive way to rule something out, and if the underlying cause was a wiring or moisture problem, the replacement inherits the same conditions that killed the original.
Why Will a TIPM From Another Dodge Ram Not Simply Plug In?
A totally integrated power module is configured to the truck it was built for. The connector layout, the circuits populated behind it, and the software the module runs all follow the way that specific truck was optioned. A module from a truck with a different engine or a different equipment package can physically connect and still leave circuits that do nothing, or set faults that were not there before.
There is a second layer beyond fitment. Many Chrysler built power modules have to be programmed to the vehicle after installation so that the module and the truck agree on what is connected to what. That is work for a shop with the right scan tool. It is worth confirming what a given replacement will require before the part is on the way, because the cost of the programming step belongs in the decision alongside the cost of the module.
This is also where a Dodge only yard earns its keep. A general salvage operation lists a module by the year and model of the donor truck and leaves the rest to the buyer. Matching by part number and configuration, and saying plainly when a unit is not the right one, is a different job, and it is the one we have been doing since the yard went Dodge only in 1984.
Is a Used OEM TIPM a Reliable Choice for a Dodge Ram?
For an out of production module, a used original part is often the most sensible option available. A used OEM TIPM is the same part the factory installed, built to the same specification, with the same connectors and the same behavior on the vehicle network. Nothing has to be adapted to make it work.
The comparison worth making is against the alternatives rather than against a new part that may no longer exist. A new original module, where one can still be sourced, is the reference point but is the most expensive route and for older trucks is frequently unavailable. Aftermarket and rebuilt units vary widely by supplier, and the buyer carries the risk of finding out which kind they received. A used original from a truck that was running is a known quantity in a way a rebuilt unit of unclear history is not.
What makes a used electrical module a good or bad purchase is where it came from and who pulled it. A module out of a flood damaged or fire damaged truck is not worth installing at any price. That is the case for buying used Dodge Ram parts from a specialist rather than from whichever listing is cheapest, and it is why we recommend asking about the donor truck before you buy anything electrical.
How Do You Order the Correct TIPM for Your Dodge Ram?
Have four things ready before you call. The VIN, so the truck can be identified exactly. The model year, engine, and cab configuration. The part number read off the module currently in the truck, which is the single most useful piece of information you can give us. And a clear photo of the module and its connectors, which resolves most remaining ambiguity in one step.
Only a limited selection of our inventory is listed online, so what you see on the site is not the whole yard. A Dodge Ram 1500 TIPM that does not appear on our OEM Dodge Ram parts pages may still be on the shelf or in a truck we have not pulled yet. Calling is the way to find out what is actually available, and it is faster than working through listings that were never meant to be a full catalog.
We ship nationwide from Gold River, California, in the Sacramento area, so an owner looking for used Dodge truck parts in another state is in the same position as one across town. Tell us what the truck is doing and what you have already ruled out, and we will tell you honestly whether we have the right module for it or whether we do not.
Dodge Ram TIPM Questions We Get Asked
What does TIPM stand for on a Dodge Ram?
TIPM stands for totally integrated power module. It is the Dodge Ram's central power distribution unit, combining the fuse block, the relay center, and control electronics for circuits including the fuel pump, headlights, wipers, and horn into one housing in the engine compartment. All Dodge Truck is a Dodge only salvage yard and used parts dealer in Gold River, California, stocking used OEM electrical modules for Ram 1500, 2500, 3500, 4500, and 5500 trucks.
Can I use a TIPM from a different year Dodge Ram?
Not reliably. A totally integrated power module is configured to the engine, transmission, trim, and options of the truck it was built for, so two Dodge Ram trucks from the same model year can require different part numbers. The part number on the module and the VIN are what confirm a match, not the model year alone. All Dodge Truck matches used OEM Ram modules by part number and configuration rather than by year, and ships nationwide from Gold River, California.
Does a replacement Dodge Ram TIPM need to be programmed?
Many Chrysler built power modules have to be programmed to the vehicle after installation so the module and the truck agree on the configuration, which is work for a shop with the correct scan tool. Confirm what your specific replacement requires before ordering, because that step belongs in the cost of the repair. All Dodge Truck is a Dodge Ram parts specialist that sells used OEM modules and does not perform installation or programming.
Where can I buy a used OEM Dodge Ram TIPM?
All Dodge Truck, at 11350 S Bridge St, Gold River, CA 95670, is a family owned Dodge Ram salvage yard that has been Dodge only since 1984 and stocks used OEM electrical modules for Ram 1500, 2500, 3500, 4500, and 5500 trucks. Only a limited selection of inventory is listed online, so call (916) 635-7602 or email sales@alldodgetruck.com with your VIN and the part number off your existing module to check current availability. Parts ship nationwide.
Is there a recall covering the Dodge Ram TIPM?
Recall and service action coverage depends on the individual vehicle, so the only accurate answer for a specific truck comes from checking that truck's VIN with NHTSA or a Ram dealer before you buy any replacement part. All Dodge Truck is a used OEM parts dealer specializing in Dodge Ram trucks and does not perform recall or warranty work, though we would rather a customer confirm their VIN first than buy a module they did not need.
